IT TOOK THE BEST HEADS IN THE INDUSTRY TO MAKE AKAI'S NEWEST PROFESSIONAL DECK.

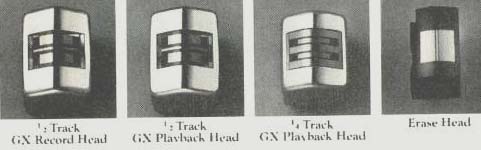

Above: (right to left) 1/2 Track GX Record Head; 1/2 Track GX Playback Head; 1/4 Track GX Playback Head; Erase Head
For years, AKAI's patented glass and crystal (GX) heads have been making recorded history. Not only for unsurpassed sound quality, but for unequalled wearability as well. Guaranteed, in fact, for 150,000 hours; the equivalent of playing 24 hours a day for almost 17 1/2 years.

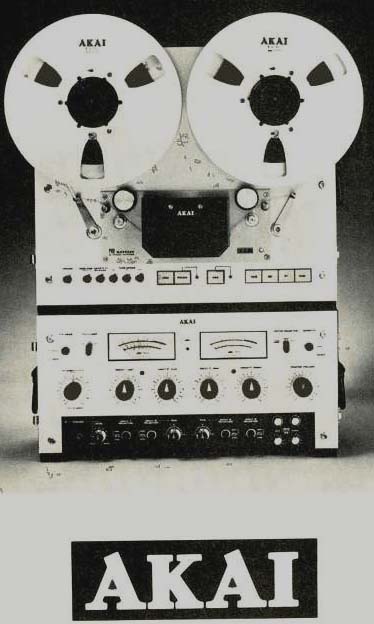

Now AKAI puts its heads together in one dynamite machine: the PRO-1000. The four-head, 2-track mastering machine that's as much at home on location as it is in the studio.
See the PRO-1000 at your AKAI dealer or write us for information.
But do it soon. Because it's already turning the heads of a lot of people.
Features:
- 3 Motors
- 3 Speeds
- 4 Heads
- 1/2 Track Record/Play and 1/4 Track Play
- 10 1/2" Reel Capacity
- Large Illuminated 40 dB meters; read Peak, VU, and Bias
- Four In/Two Out Mixer, built-in Panpots
- 20 dB Microphone input attenuators
- Variable EQ and Bias controls
- Special inputs for outboard noise reduction units, i.e. "DOLBY," "DBX"
- Double Capstan, Closed Loop Drive System
- Remote Control operation (optional RC-17 and RC-18)
- Feather touch, full logic solenoid control system
- NAB playback standards
- Fade-in and fade-out controls
- Separate sections for tape transport and tape amplifier with heavy duty carrying handles on both sections
- Pre-set clutches on all input level controls.
Specifications:
Wow and Flutter 15 IPS: 0.025% WRMS, 7 1/2 IPS: 0.04% WRMS, 3 3/4 IPS: 0.08% WRMS
Frequency Response 15 IPS @ "0" VU: 50-20 kHz +/- 1 dB, 7 1/2 IPS @ "0" VU: 40-24 kHz ± 3 dB, 3 3/4 IPS @ "0" VU: 60-12 kHz 3 dB
Overall Distortion: Not more than 1% @ 1 kHz @ "0" VU for all speeds
Signal to Noise Ratio 62 dB
Heads (4), 1/2 Track GX Record, 1/2 Track GX Playback, 1/4 Track GX Playback, Full Track Erase
Motors (3), (1) AC Servo Capstan Drive Motor, oil circulating, center pole generated (CPG).
(2) Eddy Current Motors, for fast forward and rewind, oil circulating.
Inputs Microphone (4), Line (4) E Outputs Line (4), Mixer (2), Headphone (1).
AKAI--AKAI America, Ltd., 2139 E. Del Amo Blvd., P.O. Box 6010, Compton, CA 90224
(Source: Audio magazine, Nov, 1978)
