<< cont. from part 1

Noise Shaping

Another important benefit of oversampling is a decrease in audio band quantization noise. This is because the total noise power is spread over a larger (oversampled) frequency range. In particular, each doubling of the oversampling ratio R lowers the quantization noise floor by 3 dB (10 log(R) = 10 log(2) = 3.01 dB). For example, in a four-times oversampling filter, data leaves the filter at a four-times frequency, and the quantization noise power is spread over a band that is four times larger, reducing its power density in the audio band to one-fourth, as shown in Fgr. 16. In this example, this yields a 6-dB reduction in noise (3 dB each time the sampling rate is doubled), which is equivalent to adding one bit of word length. Higher oversampling ratios yield corresponding lower noise ( For example, eight-times yields an additional 6 dB).

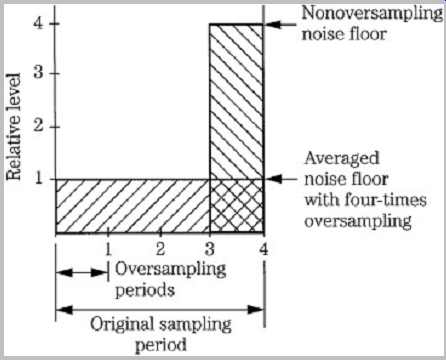

FGR. 16 Oversampling extends quantization error over a larger band, correspondingly reducing in-band error.

Noise shaping, also called spectral shaping, can significantly reduce the in-band noise floor by changing the frequency response of quantization error. The technique is widely used in both A/D and D/A conversion; for example, noise shaping can be accomplished with sigma-delta modulation. When quantization errors are independent, the noise spectrum is white; by selecting the nature of the dependence of the errors, the noise spectrum can be shaped to any desired frequency response, while keeping the frequency response of the audio signal unchanged.

Noise shaping is performed by an error-feedback algorithm that produces the desired statistically dependent errors.

In a simple noise shaper , for example, 28-bit data words from the filter are rounded and dithered to create the most significant 16-bit words. The 12 least significant bits (the quantization error that is created) are delayed by one sampling period and subtracted from the next data word, as shown in Fgr. 17A. The result is a shaped noise floor.

The delayed quantization error, added to the next sample, reduces quantization error in the output signal; the quantization noise floor is decreased by about 7 dB in the audio band, as shown in Fgr. 17B. As the input audio signal changes more rapidly, the effect of the error feedback decreases; thus quantization error increases with increasing audio frequency. For example, approaching 96 kHz, the error feedback comes back in phase with the input, and noise is maximized, as also shown in Fgr. 17B.

However, the out-of-band noise is high in frequency and thus less audible, and can be attenuated by the output filter.

This trade-off of low in-band noise, at the expense of higher out-of-band noise, is inherent in noise shaping. Noise shaping is used, and must be used, in low-bit converters to yield a satisfactorily low in-band noise floor. Noise shaping is often used in conjunction with oversampling. When the audio signal is oversampled, the bandwidth is extended, creating more spectral space for the elevated high frequency noise curve.

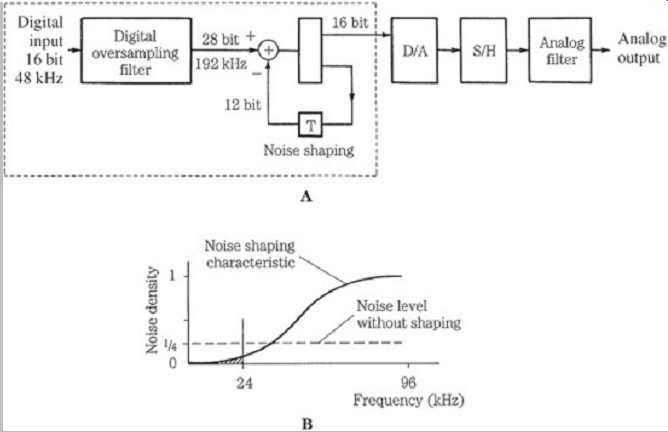

FGR. 17 Noise shaping following oversampling decreases in-band quantization error. A. Simple noise shaping loop. B. Noise shaping suppresses noise in the audio band; boosted noise outside the audio band is filtered out.

In practice, oversampling sigma-delta A/D and D/A converters are widely used. For example, an oversampling A/D converter may capture an analog signal using an initial high sampling frequency and one-bit signal, downconvert it to 48 kHz and 16 bits for storage or processing, then the signal may be upconverted to a 64- or 128-times sampling frequency for D/A conversion. Sigma-delta modulation and noise shaping is discussed in Section 18.

Noise shaping can also be used without oversampling; the quantization error remains in the audio band and its average power spectral density is unchanged, but its spectrum is psychoacoustically shaped according to the ear's minimum audible threshold. In other words, the level of the noise floor is higher at some in-band frequencies, but lower at others; this can render it significantly less audible.

Psychoacoustically optimized noise shaping is discussed in Section 18.

Output Processing

Following digital filtering, the data is converted back to analog form with a D/A converter. In the case of four-times oversampling, with a sampling frequency of 48 kHz, the aperture effect of an output S/H circuit creates a null at 192 kHz, further suppressing that oversampling image. As noted, designing a slight high-frequency boost in the digital filter can compensate for the slight attenuation of high audio frequencies. The remaining band around 192 kHz can be completely suppressed by an analog filter. This low-order anti-imaging filter follows the D/A converter. Because the oversampling image is high in frequency, a filter with a gentle, 12-dB/octave response and a -3 dB point between 30 and 40 kHz is suitable; for example, a Bessel filter can be used. It’s a noncritical design, and its low order guarantees good phase linearity; phase distortion can be reduced to ±0.1° across the audio band. Oversampling can decrease in-band noise by 6 dB, and noise shaping can further decrease in-band noise by 7 dB or more. Thus, with an oversampling filter and noise shaping, even a D/A converter with 16-bit resolution can deliver good performance.

Alternate Coding Architectures

Linear PCM is considered to be the classic audio digitization architecture and is capable of providing high quality performance. Other digitization methods offer both advantages and disadvantages compared to PCM. A linear PCM system presents a fixed scale of equal quantization intervals that map the analog waveform, while specialized systems offer modified or wholly new mapping techniques. One advantage of specialized techniques is often data reduction, in which fewer bits are needed to encode the audio signal. Specialized systems are thus more efficient, but a penalty might be incurred in reduced audio fidelity.

In a fixed linear PCM system, the quantization intervals are fixed over the signal's amplitude range, and they are linearly spaced. The quantizer word length determines the number of quantization intervals available to encode a sample's amplitude. The intervals are all of equal amplitude and are assigned codes in monotonic order. However, both of these parameters can be varied to yield new digitization architectures.

Longer word lengths reduce quantization error; however, this requires a corresponding increase in data bandwidth.

Uniform PCM quantization is optimal for a uniformly distributed signal, but the amplitude distribution of most audio signals is not uniform. In some alternative PCM systems, quantization error is minimized by using nonuniform quantization step sizes. Such systems attempt to tailor step sizes to suit the statistical properties of the signal. For example, speech signals are best served by an exponential-type quantization distribution; this assumes that small amplitude signals are more prevalent than large signals. Many quantization levels at low amplitudes, and fewer at high amplitudes, should result in decreased error.

Companding, with dynamic compression prior to uniform quantization, and expansion following quantization, can be used to achieve this result. Floating point systems use range-changing to vary the signal's amplitude to the converter, and thus expand the system's dynamic range. A greatly modified form of PCM is a differential system called delta modulation (DM). It uses only one bit for quantizing; however, a very high sampling frequency is required. Other forms of delta modulation include adaptive, companded, and predictive delta modulation. Each offers unique strengths and weaknesses. Low bit-rate, based on psychoacoustics, is discussed in Sections 10 and 11.

Floating-Point Systems

Floating-point systems use a PCM architecture modified to accept a scaling value. It’s an adaptive approach, with nonuniform quantization. In true floating-point systems, the scaling factor is instantaneously applied from sample to sample. In other cases, as in block floating-point systems, the scale factor is applied to a relatively large block of data.

Instead of forming a linear data word, a floating-point system uses a nonuniform quantizer to create a word divided into two parts: the mantissa (data value) and exponent (scale factor). The mantissa represents the waveform's uniform value and its scaled amplitude; the quantization step size is represented by the exponent. In particular, the exponent acts as a scalar that varies the gain of the signal in the PCM A/D converter. By adjusting the gain of the signal, the A/D converter is used more efficiently. Low-level signals are boosted and high-level signals are attenuated; specifically, a signal's level is set to the highest possible level that does not exceed the converter's range. This effectively varies the quantization step size according to the signal amplitude and improves accuracy of low-level signal coding, the condition where quantization error is relatively more problematic. Following D/A conversion, the gain is again adjusted to correspond to its original value.

For example, consider a floating-point system with a 10 bit mantissa (A/D converter), and 3-bit exponent (gain select), as shown in Fgr. 18. The 3-bit exponent provides eight different ranges for a 10-bit mantissa. This is the equivalent multiplicative range of 1 to 128. The maximum signals are -65,536 to 65,408. In this way, 13 bits cover the equivalent of a 17-bit dynamic range, but only a 10-bit A/D converter is required. However, large range and small resolution are not simultaneously available in a floating point system because of its nonuniform quantization. For example, although 65,408 can be represented, the next smallest number is 65,280. In a linear PCM system, the next smallest number is, of course, 65,407. In general, as the signal level increases, the number of possible quantization intervals decreases; thus, quantization error increases and the S/N ratio decreases. In particular, the S/N ratio is signal-dependent, and less than the dynamic range. In various forms, an exponent/mantissa representation is used in many types of systems.

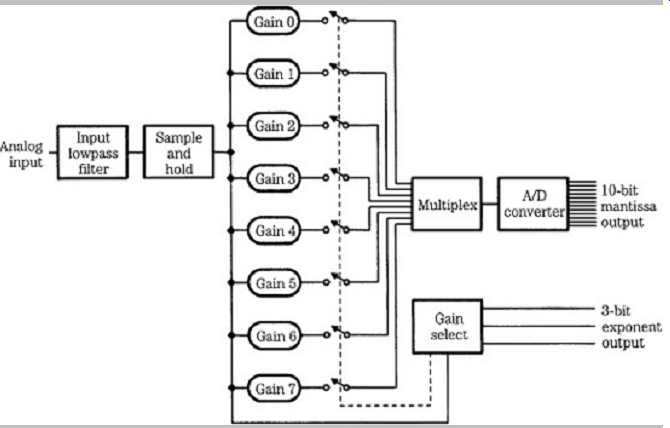

FGR. 18 A floating-point converter uses multiple gain stages to manipulate the signal's amplitude to optimize fixed A/D conversion.

A floating-point system uses a short-word A/D converter to achieve a moderate dynamic range, or a longer-word converter for a larger dynamic range. For example, a floating-point system using a 16-bit A/D converter and a 3 bit exponent adjusted over a 42-dB range in 6-dB steps would yield a 138-dB dynamic range (96 dB + 42 dB). This type of system would be useful for encoding particularly extreme signal conditions. In addition, this floating-point system only requires a split 19-bit word, but the equivalent fixed linear PCM system would require a linear 23-bit word.

In addition, when the gain stages are placed at 6-dB intervals, the coded words can be easily converted to a uniform code for processing or storage without computation. The mantissa undergoes a shifting operation according to the value of the exponent.

Although a floating-point system's dynamic range is large, the nature of its dynamic range differs from that of a fixed linear system; it’s inherently less than its S/N ratio.

This is because dynamic range measures the ratio between the maximum signal and the noise when no signal is present. With the S/N ratio, on the other hand, noise is measured when there is a signal present. In a fixed linear system, the dynamic range is approximately equal to the S/N ratio when a signal is present. However, in a floating point system, the S/N ratio is approximately determined by the resolution of the fixed A/D converter (approximately 6n), which is independent of the larger dynamic range. Changes in the signal dictate changes in the gain structure, which affect the relative amplitude of quantization error.

The S/N ratio thus continually changes with exponent switching. For example, consider a system with a 10-bit mantissa and 3-bit exponent with 6-dB gain intervals. The maximum S/N ratio is 60 dB. As the input signal level falls, so does the S/N ratio, falling to a minimum of 54 dB until the exponent is switched, and the S/N again rises to 60 dB.

For longer-word converters, a complex signal will mask the quantization error. However, in the case of simple tones, the error might be audible. For example, modulation noise from low-frequency signals and quantization noise from nearly inaudible signals might result. Another problem can occur with gain switching; inaccuracies in calibration might present discontinuities as the different amplifiers are switched.

The changes in the gain structure can affect the audibility of the error. Instantaneous switching from sample to sample tends to accentuate the problem. Instead, gain switching should be performed with algorithms that follow trends in signal amplitude, based on the type of program to be encoded. For example, syllabic algorithms are adapted to the rate at which syllables vary in speech. Gain decreases are instantaneous, but gain increases are delayed. This approximates a block floating-point system, as described below. In any event, the gain must be switched to prevent any overload of the A/D converter.

Block Floating-Point Systems

The block floating-point architecture is derived from the floating-point architecture. It’s principal advantage is data reduction making it useful for bandlimited transmission or storage. In addition, a block floating-point architecture facilitates syllabic or other companding algorithms.

In a block floating-point system, a fixed linear PCM A/D converter precedes the scalar. A short duration of the analog waveform (1 ms , for example) is converted to digital data. A scale factor is calculated to represent the largest value in the block, and then the data is scaled upward so the largest value is just below full scale. This reduces the number of bits needed to represent the signal. The data block is transmitted, along with the single scale factor exponent.

During decoding, the block is properly rescaled. In the example in Fgr. 19, 16-bit words are scaled to produce blocks of 10-bit words, each with one 3-bit exponent.

Because only one exponent is required for the entire data block, data rate efficiency is increased over conventional floating-point systems. The technique of sending one scale factor per block of audio data is used in many types of systems.

Block floating-point systems avoid many of the audible artifacts introduced by instantaneous scaling. The noise amplitude lags the signal amplitude by the duration of the buffer memory ( For example, 1 ms); because this delay is short compared to human perception time, it’s not perceived. Thus, a block floating-point system can minimize any perceptual gain error.

Floating-point systems work best when the audio signal has a low peak-to-average ratio for short durations.

Because most acoustical music behaves in this manner, system performance is relatively good. An instantaneous floating-point system excels when the program varies rapidly from sample to sample (as with narrow, high amplitude peaks) yet is inferior to a fixed linear system.

Performance dependence on program behavior is a drawback of many alternative (non-PCM) digitization systems.

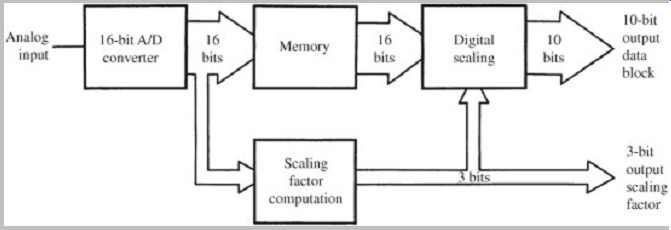

FGR. 19 A block floating-point system uses a scaling factor over individual blocks of data.

Nonuniform Companding Systems

With linear PCM, quantization intervals are spaced evenly throughout the amplitude range. As we have observed, the range changing in floating-point systems provides a nonuniform quantization. Nonuniform companding systems also provide quantization steps of different sizes, but with a different approach, called companding. Although companding is not an optimal way to achieve nonuniform quantization, its ease of implementation is a benefit.

In nonuniform companding systems, quantization levels are spaced far apart for high-amplitude signals, and closer together for low-amplitude signals. This follows the observation that in some types of signals, such as speech, small amplitudes occur more often than high amplitudes. In this way, quantization is relatively improved for specific signal conditions. This nonuniform distribution is accomplished by compressing and expanding the signal, hence the term, companding. When the signal is compressed prior to quantization, small values are enhanced and large values are diminished. As a result, perceived quantization noise is decreased.

A logarithmic function is used to accomplish companding. Within the compander, a linear PCM quantizer is used. Because the compressed signal sees quantization intervals that are uniform, the conversion is equivalent to one of nonuniform step sizes. On the output, an expander is used to inversely compensate for the nonlinearity in the reconstructed signal. In this way, quantization levels are more effectively distributed over the audio dynamic range.

A companding system is shown in Fgr. 20. The encoded signal must be decoded before any subsequent processing. Higher amplitude signals are more easily encoded, and lower amplitude signals have reduced quantization noise. This results in a higher S/N ratio for small signals, and it can increase the overall dynamic range compared to fixed linear PCM systems. Noise increases with large amplitude audio signals and is correlated; however, the signal amplitude tends to mask this noise.

Noise modulation audibility can be problematic for low frequency signals with quickly changing amplitudes.

μ-Law and A-Law Companding

The µ-law and A-law systems are examples of quasi logarithmic companding, and are used extensively in telecommunications to improve the quality of 8-bit quantization. Generally, the quantization distribution is linear for low amplitudes, and logarithmic for higher amplitudes. The µ-law and A-law standards are specified in the International Telecommunications Union (ITU) recommendation G.711.

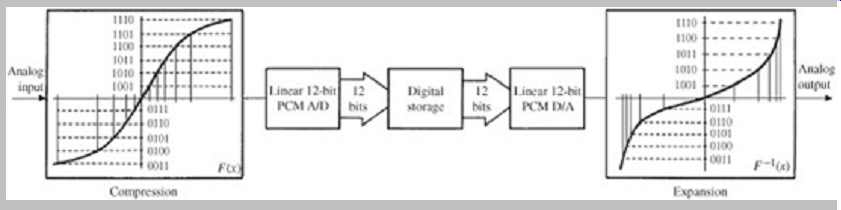

FGR. 20 A nonlinear conversion system uses companding elements before and after signal conversion.

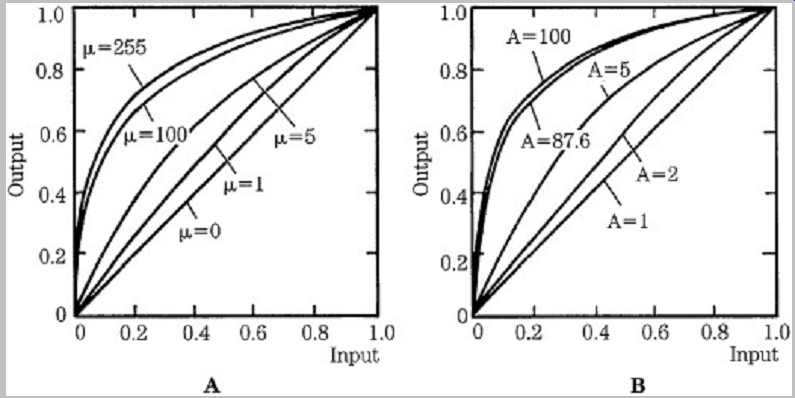

FGR. 21 Companding characteristics determine how the quantization step size varies with signal level. A. µ-law characteristic. B. A-law characteristic.

The µ-law encoding method was developed to code speech for telecommunications applications. It was developed for use in North America and Japan. The audio signal is compressed prior to quantization and the inverse function is used for expansion. The value of 0 corresponds to linear amplification, that is, no compression or uniform quantization. Larger values result is greater companding. A µ = 255 system is often used in commercial telecommunications. An 8-bit implementation can achieve a small-signal S/N ratio and dynamic range that are equivalent to that of a 12-bit uniform PCM system. The A law is a quantization characteristic that also varies quasi logarithmically. It was developed for use in Europe and elsewhere. An A = 87.56 system is often employed using a midrise quantizer. Fgr. 21 shows µ-law and A-law companding functions for several values of µ and A. The µ law and A-law transfer functions are very similar, but differ slightly for low-level input signals.

Generally, logarithmic PCM methods such as these require about four fewer bits per sample for speech quality equivalent to linear PCM; For example, 8 bits might be sufficient, instead of 12. Because speech signals are typically sampled at 8 kHz, the standard data rate for µ-law or A-law PCM data is therefore 64,000 bits/second (or 64 kbps). The device used to convert analog signals to/from compressed signals is often called a codec (coder/decoder).

Differential PCM Systems

Differential PCM (DPCM) systems are unlike linear PCM methods. They are more efficient because they code differences between samples in the audio waveform.

Intuitively, it’s not necessary to store the absolute measure of a waveform, only how it changes from one sample to the next. The differences between samples are often smaller than the amplitudes of the samples themselves, so fewer bits should be required to encode the possible range of signals. Furthermore, a waveform's average value should change only slightly from one sample to the next if the sampling frequency is fast enough; most sampled signals show significant correlation between successive samples.

Differential systems thus exploit the redundancy from sample to sample, using a few PCM bits to code the difference in amplitude between successive samples. The quantization error can be smaller than with traditional waveform PCM coding. Depending on the design, differential systems can use uniform or nonuniform quantization.

The rate at which signal voltage can change is inherently limited in DPCM systems; the coded signal amplitude decreases at 6 dB/octave; thus the S/N ratio decreases at 6 dB/octave. The frequency response of the coded signal can be filtered to improve the S/N ratio. For example, a signal with little high-frequency content can be filtered to increase high frequencies; this is reversed during decoding, and noise is relatively masked by the low frequency content.

Predictive Differential Coding

Differential systems use a form of predictive coding. The technique predicts the value of the current sample based on values of previous samples, and then codes the difference between the predicted value and the unquantized input sample value. In particular, a predicted signal is subtracted from the actual input and the difference signal (the error) is quantized. The decoder produces the prediction from previous samples; using the prediction and the difference value, the waveform is reconstructed sample by sample. When the prediction is accurate and the error signal is small, predictive coding requires fewer bits to quantize an audio signal, but performance depends on the type of function used to derive the prediction signal and its ability to anticipate the changing signal. Compared to PCM systems, differential systems are cost-effective in hardware, provide data rate efficiency, and are perceptually less affected by bit errors.

Delta Modulation

As noted, differential systems encode the difference between the input signal and a prediction. As the sampling frequency increases, the possible amount of change between samples decreases and encoding resolution increases. Delta modulation (DM) is the simplest form of differential PCM. It uses a very high sampling frequency so that only a one-bit quantization of the difference signal is used to encode the audio waveform. Conceptual operation of a delta modulation system is shown in Fgr. 22. Positive or negative transitions in the quantized waveform are used to encode the audio signal. Because the staircase can move from sample to sample by only one fixed quantization interval, a fast sampling frequency is required to track the signal's transients. In the example in Fgr. 22, the sampling frequency is insufficient to track the signal's rise time. In this slope-overload condition, the differential itself is encoded, rather than the original signal.

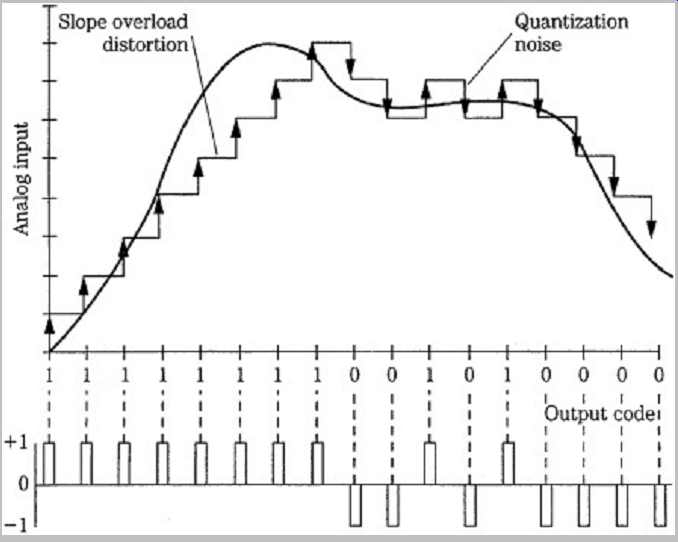

FGR. 22 In a delta-modulation coder, one differential bit is used to encode the audio signal.

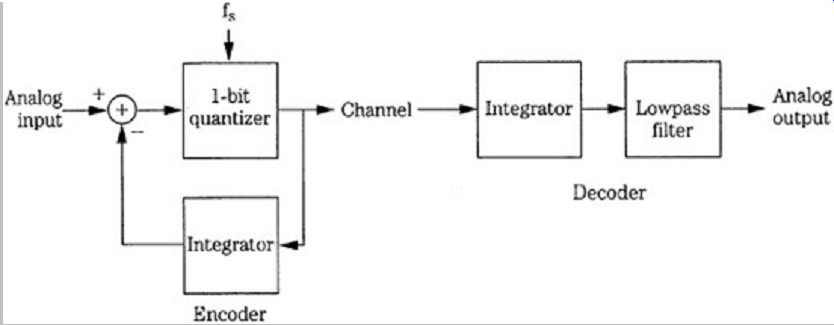

FGR. 23 Delta-modulation encoder and decoder.

Delta modulation is efficient from a hardware standpoint, as shown in Fgr. 23. Integrators are used as first-order predictors. The difference between the input signal and its predicted value is quantized as a one-bit correcting word and generated at sample time. The system determines if the sign of its error is positive or negative, and applies the sign (a positive or negative pulse) to the integrator that correspondingly moves its next value up or down one increment, always closer to the present value. The accuracy of the encoding rests on the size of the increment, or step.

Also, the signal must change at each sample; it cannot be constant. At the output, the correction signal is decoded with an integrator to estimate the input signal. As with any DPCM system, the coded signal amplitude decreases with frequency, so the S/N ratio decreases by 6 dB/octave. Only one correction can occur per sample interval, but a very fast rate could theoretically allow tracking of even a fast transient audio waveform. Delta modulation offers excellent error performance. In a linear PCM system, an uncorrected MSB error results in a large discontinuity in the signal. With delta modulation, there is no MSB. Each bit merely tracks the difference between samples, thus inherently limiting the amount of error to that difference. The possibility of degradation, however, necessitates error correction. Parity bits and interleaving are commonly used for this purpose.

From a practical standpoint, DM fails to perform well in high-fidelity applications because of its inherent trade-off between sampling frequency and step size. Encoding resolution is directly dependent on step size. The smaller the steps, the better the approximation to the audio signal, and the lower the quantization error. However, when the encoding bit cannot track a complex audio waveform that has low sample-to-sample correlation, slew rate limitations yield transient distortion. The sampling frequency can be increased with oversampling to compensate, but the rates required for successful encoding of wide bandwidth signals are extreme. Perceptually, when slope overload is caused by high-frequency energy, the signal tends to mask the distortion. Quantization error is always present, and is most audible for low-amplitude signals. To make the best of the circumstances, step size can be selected to minimize the sum of the mean squares of the two distortion values from slope overload and quantization. Timothy Darling and Malcolm Hawksford have shown that the signal to quantization error ratio of a delta modulation system can be expressed as:


where fs = sampling frequency

fb = noise bandwidth

fi = audio (sine-wave) frequency

To achieve a 16-bit PCM S/N ratio of 96 dB over a 20 kHz bandwidth, a DM system would require clocking at 200 MHz. Although a doubling of bit rate in DM results in an increase in S/N of 9 dB, a doubling of word length in PCM produces an exponential S/N increase. From an informational standpoint, we can see that the nature of DM hampers its ability to encode audio information. A sampling frequency of 500 kHz , for example, would theoretically permit encoding of frequencies up to 250 kHz, but that bandwidth is largely wasted because of the relatively low frequency of audio signals. In other words, the informational encoding distribution of delta modulation is inefficient for audio applications.

On the other hand, the high sampling frequency required for delta modulation offers one benefit. As observed with noise shaping , for each doubling of sampling frequency, the noise in a fixed band decreases by 3 dB. The total noise remains constant, but it’s spread over a larger spectrum thus in-band noise is reduced. This somewhat lowers the noise floor in a DM system. In addition, because of the high sampling frequency, brick-wall filters are not required. Low order filters can provide adequate attenuation well before the half-sampling frequency without affecting audio response. Of course, conventional A/D and D/A converters are not required. Ultimately, because of its limitations, delta modulation is not often used for high-fidelity applications.

However, a variation known as sigma-delta modulation offers excellent results and is widely used in oversampling A/D and D/A converters, as discussed in Section 18. The Super Audio CD (SACD) format uses Direct Stream Digital (DSD) coding, a one-bit pulse density method using sigma-delta modulation. SACD is discussed in Section 7.

Adaptive Delta Modulation

Adaptive delta modulation (ADM) systems vary quantization step sizes to overcome the transient response limitations of delta modulation. At the same time, quantization error is held to a reasonable value. A block diagram of an ADM encoder is shown in Fgr. 24A. The encoder examines input data to determine how to best adjust step size. For example, with a simple adaptive algorithm, a series of all-positive or all-negative difference bits would indicate a rapid change from the approximation.

The step size would increase to follow the change either positively or negatively. The greater the overload condition, the larger the step size selected. Alternating positive and negative difference bits indicate good tracking, and step size is reduced for even greater accuracy, as shown in Fgr. 24B. This yields an increase in S/N, with no increase in sampling frequency or bit rate. As more bits in the stream are devoted to diagnosing signal behavior, step size selection can be improved.

ADM design is complicated because the decoder must be synchronized to the step size strategy to recognize the variation. Also, it can be difficult to change step size quickly and radically enough to accommodate sharp audio transients. As high-frequency and high-amplitude signals demand large increments, quantization noise is increased, producing noise modulation with a varying noise floor. In addition, it’s difficult to inject a dither signal in an ADM system; since the step size changes, a fixed amount of dither is ineffective. Error feedback can reduce in-band noise. A pre-emphasis filter characteristic can reduce subjective noise in small-amplitude signals, mask the change in noise with changing step size, and reduce low frequency noise in high-amplitude, high-frequency signals.

As the audio slope increases, a control signal from the delta modulator, the same signal used to control step size, raises the frequency of the highpass filter and attenuates low frequencies. Another variation of ADM is continuously variable slope delta modulation (CVSDM), in which step size is continuously variable, rather than incremental.

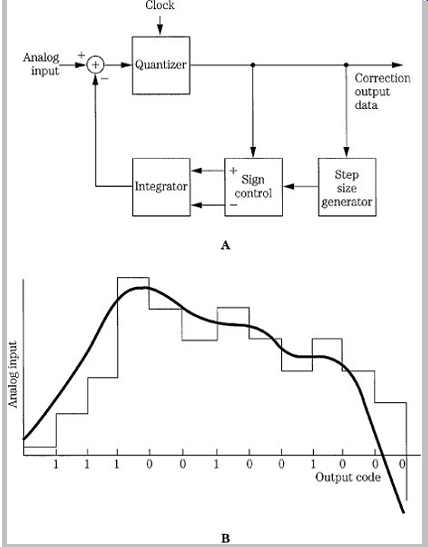

FGR. 24 Operation of an adaptive delta modulation encoder. A. Block diagram of an adaptive delta modulation encoder with variable step size. B. Changes in step size are triggered by continuous 1s or 0s.

Companded Predictive Delta Modulation

Companded predictive delta modulation (CPDM) rejects ADM in favor of a compander delta modulation scheme.

Instead of varying the step size in relation to the signal, the signal's amplitude is varied prior to the constant step size delta modulator to protect against modulator overload. To reduce the quantization noise floor level, a linear predictive filter is used, in which an algorithm uses many past samples to better predict the next sample.

The companding subsystem consists of a digitally controlled amplifier in both the encoder and decoder , for controlling broadband signal gain. The bitstream itself controls both amplifiers to minimize tracking error. The digitally controlled amplifiers continually adjust the signal over a large range to best fit the fixed step size of the delta modulator. A transient "speed-up" circuit in the level sensing path allows faster gain reduction during audio transients. Strings of 1s or 0s indicate the onset of an overload, and trigger compression of broadband gain to ensure that the transients are not clipped at the modulator.

The speed of the gain change can be either fast or slow, depending on the audio signal dynamics. Spectral compression can be used to reduce variations in spectral content; the circuit could reduce high frequencies when the input spectrum contains predominantly high frequencies, and boost high frequencies when the spectrum is weighted with low frequencies. The spectrum at the A/D converter is thus more nearly constant.

Adaptive Differential Pulse-Code Modulation

Adaptive differential pulse-code modulation (ADPCM) combines the predictive and adaptive difference signal of ADM with the binary code of PCM to achieve data reduction. Although designs vary, in many cases the difference signal to be coded is first scaled by an adaptive scale factor, and then quantized according to a fixed quantization curve. The scale factor is selected according to the signal's properties; for example, the quantizer step size can be varied in proportion to the signal's average amplitude. Signals with large variations cause rapid changes in the scale factor, whereas more stable signals cause slow adaptation. Step size can be effectively varied by either directly varying the step size, or by scaling the signal with a gain factor.

A linear predictor, optimized according to the type of signal to be coded, is used to output a signal estimate of each sample. This signal is subtracted from the actual input signal to yield a difference signal; this difference signal is quantized with a short PCM word (perhaps 4 or 8 bits) and output from the encoder. In this way, the signal can be adaptively equalized, and the quantization noise adaptively shaped, to help mask the noise floor for a particular application. For example, the noise can be shaped so that its spectrum is white after decoding. Noise shaping is described in Section 18.

The decoder performs the same operations as the encoder; by reading the incoming data stream, the correct step size is selected, and the difference signal is used to generate the output samples. Lowpass filtering is applied to the output signal. The benefit of ADPCM is bit-rate reduction based on the tendency for amplitude and spectrum distribution of audio signals to be concentrated in a specific region. The scale factors and other design elements in an ADPCM algorithm take advantage of these statistical properties of the audio signal. In speech transmission applications, a bit rate of 32 kbps (kilobits per second) is easily achieved.

ADPCM's performance is competitive, or relatively superior to that of fixed linear PCM. When the audio signal remains near its maximum frequency, ADPCM's performance is similar to PCM's. However, this is rarely the case with audio signals. Instead, the instantaneous audio frequency is relatively low, thus the signal changes more slowly, and amplitude changes are smaller. As a result, ADPCM's quantization error is less than that of PCM. In theory, given the same number of quantization bits, ADPCM can achieve better signal resolution. In other words, relatively fewer bits are needed to achieve good performance. In practice, a 4-bit ADPCM signal might provide fidelity subjectively similar to an 8-bit PCM signal.

Variations of the ADPCM algorithm are used in many telecommunications standards. The ITU-T Recommendation G.721 uses ADPCM operating at 32 kbps. G.722 contains another example of an ADPCM coder. G.723 uses ADPCM at bit rates of 24 to 40 kbps.

G.726 specifies a method to convert 64 kbps µ-law or A law PCM data to 16-, 24-, 32-, or 40-kbps ADPCM data.

The bit rate of 32 kbps is used for speech applications. In the G.726 standard, both the quantizer and predictor adapt to input signal conditions. The G.727 standard uses ADPCM at bit rates of 16, 24, 32 and 40 kbps. The G.727 standard can also be used within the G.764 standard for packet network applications. Speech coding is described in more detail in Section 12.

The CD-ROM/XA format uses several ADPCM coding levels to deliver fidelity according to need. An 8-bit ADPCM quality level can yield an S/N ratio of 90 dB, and bandwidth of 17 kHz. The two 4-bit levels yield an S/N of 60 dB, and bandwidths of 17 kHz and 8.5 kHz. During encoding, the original audio data frequency (44.1 kHz) is reduced by a sampling rate converter to a lower frequency (37.8 kHz or 18.9 kHz) depending on the quality level selected. The original word length (16 bits) is reduced (4 or 8 bits) per sample with ADPCM encoding. Four different prediction filters can be selected to optimize the instantaneous S/N ratio; a filter is selected for a block of 28 samples depending on the spectral content of the signal.

Companding and noise shaping are also used to increase dynamic range. The filter type is described in each data block. During ADPCM decoding, the audio data is block decoded and expanded to a linear 16-bit form. Depending on audio quality level, this ADPCM encoder can output from 80 to 309 kbps/channel, yielding a reduced data rate.

ADPCM with a 4:1 compression ratio is sometimes used in QuickTime software, and Windows software may use ADPCM coding in .aiff and .wav files. ADPCM also appears in video-game platforms.

Unlike perceptual coding algorithms, ADPCM encoding and decoding may be executed with little processor power.

For example, the Interactive Multimedia Association (IMA) version of ADPCM is quite concise. Four bits can be used to store each sample. The encoder finds the difference between two samples, divides it by the current step size and outputs that value. To create the next sample, the decoder multiplies this value by the current step size and adds it to the result of the previous sample. The step size is not stored directly. Instead, a table of possible step sizes (perhaps 88 entries) is used; the entries follow a quasi exponential progression. The decoder references the table, using previous values to correctly update the step size.

When the scaled difference is small, a smaller step size is selected; when the difference is large, a larger step size is selected. In this way, ADPCM coding may be efficiently performed in software.

ADPCM, as well as other specialized designs, offer alternatives to classic linear PCM design. They adhere to the same principles of sampling and quantizing; however, their implementations are quite different. Perceptual coding systems are commonly used to code audio signals when bit rate is the primary concern; these systems are discussed in Sections 10 and 11.

Timebase Correction

As we observed in Section 3, modulation coding is used in storage and transmission channels to improve coding efficiency and , for example, make the data self-clocking.

However, successful recovery of data is limited by the timebase accuracy of the received clock. For example, speed variations in the transport of an optical disc player, instability imposed on a data stream's embedded clock, and timing inaccuracies in the oscillator used to clock an A/D or D/A converter can all lead to degraded performance in the form of data errors, or noise and modulation artifacts in the converted waveform. For successful recovery of data, receiver circuits must minimize timebase errors that occur in the storage medium, during transmission, or within regeneration and conversion circuitry itself. For example, phase-locked loops (PLLs) are often used to resynchronize a receiver with the transmitted channel code's clock.

Timing accuracy is challenging in the digital environment, because of the noise and interference that is present. Moreover, tolerances needed for timebase control increase with word length; For example, 20-bit conversion requires much greater timebase accuracy than 16-bit conversion. Above all, timing stability can be problematic because of the absolute tolerances it demands. A clock might require timing accuracy of 20 ps (picoseconds). Note that a picosecond is the reciprocal of 1 THz (terahertz), which is 1000 GHz (gigahertz), which is 1,000,000 MHz.

Jitter

Any deviation in the zero-crossing times of a data waveform from the zero-crossing times of a perfectly stable waveform can be characterized as jitter. In particular, it’s the time-axis instability of a waveform measured against an ideal reference with no jitter. Timing variations in an analog signal may be directly audible as pitch instability. However, jitter in a digital signal may cause bit errors in the bitstream or be indirectly audible as increased noise and distortion in the output analog waveform or, if the digital signal is correctly de-jittered, there may be no bit errors or audible effects at all. Jitter is always present; its effect and the required tolerance depend on where in the signal processing chain the jitter occurs. Relatively high jitter levels won’t prevent error-free transfer of data from one device interfaced to another, but some interface devices are less tolerant of jitter than others. During A/D or D/A conversion, even low jitter levels can induce artifacts in the conversion, even low jitter levels can induce artifacts in the analog output waveform; some converters are also less tolerant of jitter than others.

Jitter manifests itself as variations in the transition times of the signal, as shown in Fgr. 25. Around each ideal transition is a period of variation or uncertainty in arrival time; this range is called the peak-to-peak jitter. Jitter occurs in data in a storage medium, transmission channel, or processing or regeneration circuits such as A/D and D/A converters. Jitter can occur as random variations in clock edges (white phase jitter), it can be related to the width of a clock pulse (white FM jitter), or it can be related to other events (correlated jitter), sometimes periodically.

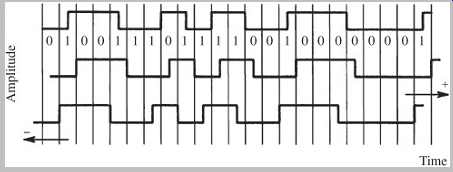

FGR. 25 A time variation in the medium, or regeneration or processing circuits, results in a timebase jitter error.

Jitter is best described by its spectral characteristics; this shows the amplitude and frequency of the jitter signal.

Random jitter will show a broadband spectrum; when the data is reconstructed as an analog waveform it will have an increased noise floor. Periodic jitter will appear as a single spectral line; FM sidebands or modulated noise could appear in the reconstructed signal, spaced on either side of the signal frequency. Jitter at frequencies less than the sampling frequency causes a timing error to accumulate; the error depends on the amplitude and frequency of the modulation waveform. Generally, peak-to-peak jitter is a valid measure; however, when the jitter is random, a root mean square (rms) jitter measure is valid. Care must be taken when specifying jitter; For example, if the deviation in a clock signal's period width is averaged over time, the average can converge to zero, resulting in no measured jitter.

Eye Pattern

An oscilloscope triggered from a stable reference clock, and timebase set at one unit interval (UI ), will display a superimposed successive transition known as the eye pattern. (A reference clock can be approximated by a phase-locked low-jitter clock.) The eye pattern can be used to interpret the quality of the received signal. It will reveal noise as the waveform's amplitude variations become indistinct, and jitter as the transitions shift about time intervals of the code period. Peak shift, dc offset, and other faults can be observed as well. The success in regeneration can similarly be evaluated by examining the eye pattern after processing. Noise in the channel will tend to close the pattern vertically (noise margin), and jitter closes it horizontally (sampling time margin), as shown in Fgr. 26, possibly degrading performance to the point where pulse shaping can no longer accurately retrieve the signal. The amount of deterioration can be gauged by measuring the extent of amplitude variations, and forming an eye opening ratio:


where, a1 = outside amplitude

a2 = inside amplitude

Δa = amplitude variation

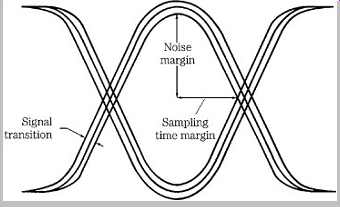

FGR. 26 The eye pattern can be used to interpret the quality of an RF data signal. A minimum inside eye opening size determines the limit of a signal's usability. If the eye closes, errors will result.

Both variations are measured from the center of the opening in the eye pattern. The eye height is specified in volts, and eye width in bit time or percent of cell period. The width of the eye gives the percentage of the data period available to ascertain its logical value, and the height shows the maximum difference between these levels during the available time. The receiver is generally able to read the signal if the eye opening has at least a minimum interior size and is maintained at coded intervals; the center of the eye shows the amplitude level decision threshold and the sampling time. However, jitter introduced into the receiver's clock recovery circuits will cause the receiver to sample the data further from the center of the data cell.

Jitter observed on an oscilloscope shows the dynamic variations in the signal, but a more careful method applies the data signal to an FM demodulator, which is connected to a spectrum analyzer. Random jitter exhibits a broadband spectrum and raises the noise floor in the analog signal reconstructed from the data. Periodic jitter will appear as a single spectral line, at a low frequency for a slow clock variation or at a high frequency for a fast clock variation; the reconstructed signal may contain FM sidebands or modulated noise.

Interface Jitter and Sampling Jitter

The significance of jitter depends on where in the signal chain it’s considered. For example, it’s important to distinguish between interface jitter (which occurs in digital to-digital data transfer) and sampling jitter (which occurs when converting data into and out of the digital domain).

Interface timing errors are distinct from those caused by sampling jitter. Interface jitter occurs in transmitted data clocks, when conveying data from one device to another.

Interface jitter is a concern if it causes uncorrected errors in the recovered signal; the quality of transmitted data can be monitored by error detection circuits at the receiver. Many data streams are self-clocking; a receiver must recover the clock and hence the data by synchronizing to the transmitted clock. A receiving circuit with a fixed clock would not be able to lock onto a signal with unregulated timing variations in the received clock, even if its rate was nominally equal to the received clock rate. For this reason, receiving circuits commonly use a phase locked loop (PLL) circuit to align their clocks with the data rate of the incoming signal. An interface PLL, as shown in Fgr. 27, acts like a mechanical flywheel, using its lowpass filter characteristic to attenuate short-term fluctuations in the signal timing. It tracks the slowly changing data signal, but strips off its quickly changing jitter. A PLL accepts the input signal as a timing reference, measures the phase error between the input signal and its own output through a feedback loop and uses the error to control a voltage controlled oscillator (VCO) within the loop. In response, the VCO reaches equilibrium by minimizing this loop phase error. Once the VCO is locked to the phase of the input signal, the oscillator runs at the reference frequency or a multiple of it. The oscillator is decoupled from the reference, attenuating high-frequency jitter on the PLL's output data. A PLL can thus provide jitter reduction by reclocking signals to an accurate and stable timebase.

Adversely, at lower jitter frequencies relative to the filter's corner frequency, a PLL's jitter attenuation will be reduced.

At low jitter frequencies, the PLL will track the jitter and pass it on (a second PLL stage with a lower corner frequency might be needed). Moreover, any gain near the cutoff frequency of the PLL's lowpass filter function would increase jitter.

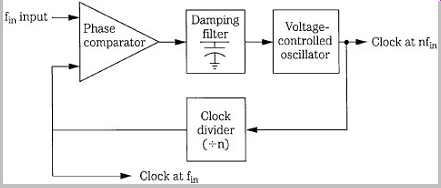

FGR. 27 An example of an interface phase-locked loop.

The PLL's limited bandwidth prevents jitter from passing through the PLL on the output data or output clock.

If the recovered data is free of errors, interface jitter has not affected it. However, if subsequent reclocking circuits don’t remove jitter from the recovered data, potentially audible artifacts can result from sampling jitter at the D/A converter. Sampling jitter can affect quality of an audio signal as it’s sampled or resampled with this timing error.

Sampling jitter can be induced by sampling clocks, and affects the quality of the reproduced signal, adding noise and distortion. Timing tolerances must be very tight so that timing errors in a recovered clock are minimized. The clock generating circuits used in a sampling device may derive a timing reference from the interface signal. In this case, a PLL might be needed to remove interface jitter to yield a sample clock that is pure enough to avoid potentially audible jitter modulation products.

Jitter can occur throughout the signal chain so that precautions must be taken at each stage to decouple the bitstream from the jitter, so data can be passed along without error. This is particularly important in a chain of connected devices because jitter will accumulate in the throughput signal. Each device might contribute a small amount of jitter, as will the interface connections, eventually leading to data errors or conversion artifacts. Even a badly jittered signal can be cleaned by retiming it through jitter attenuation. With proper means, the output data is correct in frequency and phase, with propagated jitter within tolerance.

Jitter in Mechanical Storage Media

Jitter must be controlled throughout the audio digitization chain, beginning at the mechanical storage media. Storage media such as optical disc can impose timebase errors on the output data signal because of speed variations in the mechanical drives they use. Accurate clocks and servo systems must be designed to limit mechanical speed variations, and input and output data must be buffered to absorb the effects of data irregularities. Speed variations in the transport caused by eccentricities in the rotation of spindle motors will cause the data rate to vary; the transport's speed can slowly drift about the proper speed, or fluctuate rapidly. If the amount of variation is within tolerance, that is, if the proper value of the recorded data can be recovered, then no error in the signal results.

Servo control circuits are used to read timing information from the output data and generate a transport correction signal. In many cases, a PLL circuit is used to control the servo, as shown in Fgr. 28. Speed control can be achieved with a PLL by comparing the synchronization words in the output bitstream (coded at a known rate) to a reference, and directing a speed control servo voltage to the spindle motor to dynamically minimize the difference.

Fine speed control can use a second PLL , for example, to achieve constant linear velocity in an optical disc drive.

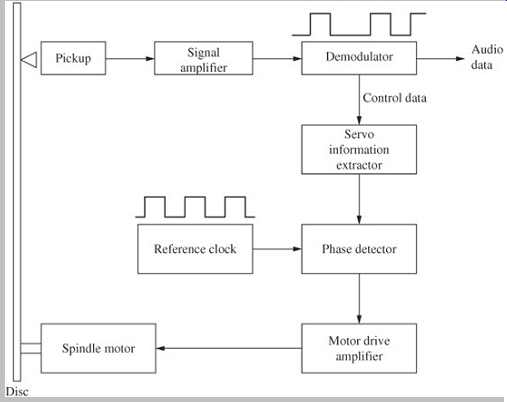

FGR. 28 An example of a servo-pulse extractor/control loop used to control disc speed.

Although phase-locked servo systems act to maintain accurate and constant speed of the mechanical storage medium, timebase errors can still exist in the data.

Likewise, jitter might be encountered whenever data is transmitted through an electrical or optical interconnection.

To minimize the effect of timebase variations, data is often reclocked through a buffer. A buffer memory effectively increases the capture range for a data signal; For example, sampling frequency variations can be absorbed by the buffer. However, the longer the buffer, the greater the absolute time delay experienced by the throughput signal; delays greater than a few milliseconds can be problematic in real-time applications such as radio broadcasting where off-the-air monitoring is needed.

A buffer can be designed using RAM so that its address counter periodically overflows, resulting in a virtual ring structure. Because data output from the memory is independent from data being written, an inconsistent data input from the medium does not affect a precise data output. Clearly, the clock controlling the data readout from memory must be decoupled from the input clock. The amount of data in the buffer at any time can be used to control a transport's speed. For example, the difference between the input and output address, relative to buffer capacity, can be converted to an analog servo signal. If the buffer's level differs from the optimal half-full condition, the servo is instructed to either speed up or slow down the transport's speed. In this way, the audio data in the buffer neither overflows nor underflows.

Alternatively a buffer can be constructed using a first-in first-out (FIFO) memory. Input data is clocked into the top of the memory as it’s received from the medium, and output data is clocked from the bottom of the memory. In addition to their application in reducing jitter, such timebase correction circuits are required whenever a discontinuous storage medium such as a hard disk is used. The buffer must begin filling when a sector is read from the disk, and continue to output data between sector read cycles.

Likewise, when writing to memory, a continuous data stream can be supplied to the disk drive for each sector. If jitter is considerably less than a single bit period, no buffer is needed.

Jitter in Data Transmission

Interface jitter must be minimized during data transmission.

No matter what jitter errors are introduced by the transmitting circuit and cable, the receiver has two tasks: data recovery and clock recovery. Jitter in the signal can affect the recovery of both, but the effect of jitter depends on the application. When data is transferred but won’t be regenerated (converted to analog) at the receiver, only data recovery is necessary. The interface jitter is only a factor if it causes data errors at the receiver. The jitter tolerance is relatively low; For example, data with 5 to 10 ns of jitter could be recovered without error. However, when the data is to be regenerated or requantized, data recovery and particularly clock recovery are needed. High jitter levels may compromise a receiver's ability to derive a stable clock reference needed for conversion. Depending on the D/A converter design, clock jitter levels as low as 20 ps might be required.

For example, when digitally transferring data from a CD player, to a flash recorder, to a workstation, to a hard-disk recorder, only interface jitter is relevant to the data recovery. Jitter attenuation might be required at points in the signal path so that data errors don’t occur. However, when the data is converted to an analog signal at a D/A converter, jitter attenuation is essential. Clock jitter is detrimental to the clock recovery process because it might compromise the receiver's ability to derive a stable clock reference needed for conversion.

As noted, a receiving PLL circuit separates the received clock from the received data, uses the received clock to recover the data, and then regenerates the clock (attenuating jitter), using it as the internal timebase to reclock the data (see Fgr. 27). In some designs, a receiver might read the synchronizing signal from input data, place the data in a buffer, and then regenerate the clock and output the data with the frequency and phase appropriate to the destination. The buffer must be large enough to prevent underflow or overflow; in the former, samples must be repeated at the output, and in the latter, samples must be dropped (in both cases, ideally, during silences). The method of synchronizing from the embedded transmission clock is sometimes called "genlock." It works well in most point-to-point transmission chains. When the data sampling frequency is different from the local system sampling frequency, a sample rate converter is needed to convert the incoming timebase; this is described in Section 13. Sample rate converters can also be used as receivers for jitter attenuation.

Some receivers used in regeneration devices use a two-stage clock recovery process, as shown in Fgr. 29.

The first step is clock extraction; the received embedded clock is synchronized so the data can be decoded error free in the presence of jitter. An initial PLL uses data transitions as its reference; the PLL is designed to track jitter well, but not attenuate it. At this stage, the sample clock might have jitter. The recovered data is placed in a FIFO buffer. A buffer is not needed if the jitter at this stage is considerably less than one bit period. The second step is jitter attenuation; a PLL with low-jitter clock characteristics locks to the sample clock and retimes it with an accurate reference. The new, accurate clock is used to read data from the FIFO. In other words, the second PLL is not required to track incoming jitter, but is designed to attenuate it. Overall, a receiver must decouple the digital interface from the conversion circuitry before regeneration.

Looked at in another way, degraded sound from a converter due to clock jitter might not be the converter's fault-it might be the receiver's.

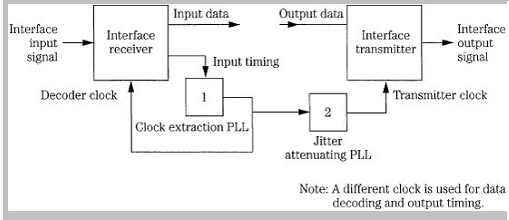

FGR. 29 An example of dual-clock transceiver architecture, providing clock extraction and jitter attenuation.

Levels of transmission jitter often depend on cable characteristics. One type of cable-induced jitter, called pattern-dependent jitter, is a modulation that depends on the data values themselves. For example, patterns of 0s might produce more delay in transitions than patterns of 1s.

The amount of modulation is a function of the high frequency loss (bandwidth) of the cable. For example, jitter might be less than 1 ns if the cable has a 3-dB bandwidth of more than 4 MHz, but jitter increases to 9 ns if bandwidth is halved. For this reason, many transmission protocols use a fixed synchronization pattern or preamble; because the pattern is static, this cause of pattern-dependent jitter is removed. However, pattern-dependent jitter can be caused by other factors. For example, pattern-dependent jitter can be correlated to the polarity and frequency of the audio signal. When the coded audio signal level is low and at a single frequency, the more significant bits change together to reflect signal polarity, and pattern-dependent jitter can occur at that frequency. Any serial format that does not scramble its data word is prone to this phenomenon; with scrambling, this pattern-dependent jitter would be decorrelated and thus would be benign.

In more complex installations, with many devices, jitter protection is more sophisticated. If devices are cascaded without a master clock signal, clocking is derived from each previous device, which extracts it from its input data. Some devices can pass jitter, or even amplify some jitter components. For example, even if a PLL attenuates high frequency jitter, it might pass low-frequency jitter. Jitter can thus accumulate, to the point where downstream devices lose lock. For more accurate transmission through a signal chain, each piece of equipment must be frequency-locked to a star-configuration distributed master clock. Devices must have both data inputs, as well as external clock inputs.

The use of an external clock is sometimes called master clock synchronization. Each device ignores jitter on its input data and instead accepts a clock from the master reference; jitter cannot accumulate. Interconnection synchronization issues are discussed in Section13.

Jitter in Converters

Jitter must be controlled throughout the digital audio chain, but it’s more critical at conversion points. It must be carefully minimized in the clocks used for both A/D and D/A converters; faults can result in degradation of the output analog waveform. Audio samples must be acquired particularly carefully at the A/D converter. Simply put, clock jitter at the A/D converter results in the wrong samples (incorrect amplitude values) at the wrong time. Moreover, even if these samples are presented to a D/A converter with a jitter-free clock, the result will be the wrong samples at the right time. The magnitude of the error is proportional to the slope of the audio signal; the amplitude of the error increases at higher audio frequencies. Jitter is most critical in the A/D converter clock. Crystal oscillators typically have jitter of less than 10 ps rms; they must be used as reference for the entire digital system. Good circuit design and board layout are mandated. Clocks that use PLLs to divide down a high-frequency master clock to a usable average frequency are often prone to jitter.

Analyzed in the frequency domain, the effects of jitter on the sampling clock of an A/D converter are quite similar to FM modulation; the input frequency acts as the carrier, and clock jitter acts as the modulation frequency. Low-frequency periodic jitter reduces the amplitude of the input signal, and adds sideband components equally spaced at either side of the input frequency at a distance equal to multiples of the jitter frequency. As jitter increases, the amplitude of the sidebands increases. The effect of jitter increases as the input signal frequency increases; specifically, jitter amplitude error increases with input signal slew rate. In A/D converters, jitter must not interfere with correct sampling of the LSB. A 2-ns white-noise clock jitter applied to a successive approximation 16-bit A/D converter will degrade its theoretical dynamic range of 98 dB to 91 dB, as shown in Fgr. 30.

The timing accuracy required for A/D conversion is considerable: the maximum rate of change of a sinusoidal waveform occurs at the zero crossing and can be calculated as 2 Af, where A is the peak signal amplitude and f is the frequency in Hertz. By one estimation, a jitter specification of 250 ps would allow 16-bit accuracy from a full amplitude, 20-kHz sine wave. Only then would the jitter components fall below the quantization noise floor. A peak jitter of less than 400 ps would result in artifacts that decrease the dynamic range by less than 0.5 dB. Steven Harris has shown that oversampling sigma-delta A/D converters are equally susceptible to sinusoidal clock jitter as Nyquist nonoversampling successive approximation A/D converters. Oversampling sigma-delta A/D converters are less susceptible to random clock jitter than Nyquist sampling A/D converters because the jitter is extended over the oversampling range, and lowpass filtered.

D/A converters are also susceptible to jitter. The quality of samples taken from a perfectly clocked A/D converter will be degraded if the D/A converter's clock is nonuniform, creating the scenario of the right samples at the wrong time. Even though the data values are numerically accurate, the time deviations introduced by jitter will result in increased noise and distortion in the output analog signal.

Fortunately, the distortion in the output waveform is a playback-only problem; the data itself might be correct, and only awaits a more accurate conversion clock. The samples are not wrong, they are only being converted at the wrong times. Not all data receivers (such as some S/PDIF receivers discussed in Section13) provide sufficiently low jitter. As noted, in improved designs, data from a digital interconnection or hardware source is resynchronized to a new and accurate clock to remove jitter from the data signal prior to D/A conversion; phase-locked loops or other circuits are used to achieve this.

The effect of jitter on the output of a resistor ladder D/A converter can be observed by subtracting an output staircase affected with jitter from an ideal, jitter-free output.

The difference signal contains spikes corresponding to the timing differences between samples; the different widths correspond to the differences in arrival time between the ideal and jittered clocks. The amplitudes of the error pulses correspond to the differences in amplitude from the previous sample to the present; large step sizes yield large errors. The signal modulates the amplitudes, yielding smaller values at signal peaks. The error noise spectrum is white because there is no statistical relationship between error values. The noise amplitude is a function of step size, specifically, the absolute value of the average slope of the signal. Thus, the worst case for white phase jitter on a resistor ladder D/A converter occurs with a full-amplitude signal at the Nyquist frequency. Depending on converter design (and other factors) a jitter level of at least 1 ns is necessary to obtain 16-bit performance from a resistor ladder converter. A tolerance of half that level, 500 ps, is not unreasonable. Unfortunately, consumer devices might contain clocks with poor stability; jitter error can cause artifact peaks to appear 70 dB or 80 dB below the maximum level.

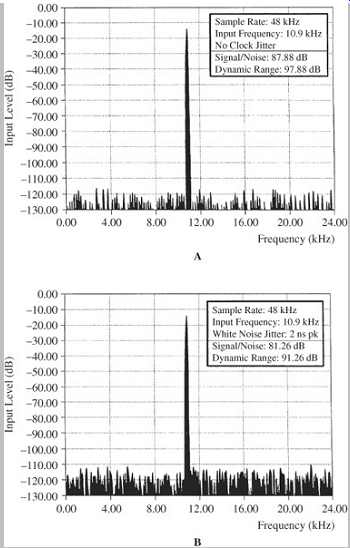

FGR. 30 Simulations showing the spectrum output of nonoversampling A/D conversion. A. No clock jitter. B. White noise clock jitter with 2-ns peak value.

The error caused by jitter is present in the jitter spectrum. Further, jitter bandwidth extends to the Nyquist frequency. Oversampling thus spreads the error over a larger spectrum. When an oversampling filter is used prior to resistor ladder conversion, the converter's sensitivity to random (white phase) jitter is reduced in proportion to the oversampling rate; For example, an eight-times oversampling D/A converter is four times less sensitive to jitter as a two-times converter in the audio band of interest.

However, low-frequency correlated jitter is not reduced by oversampling.

Sigma-delta D/A converters, discussed in more detail in Section 18, can be very sensitive to clock jitter, or not particularly, depending on their architecture. When a true one-bit rail-to-rail signal is output, jitter pulses have constant amplitude. In a one-bit converter in which the output is applied to a continuous-time filter, random jitter is signal-independent, and in fact jitter pulses will be output even when no signal is present. A peak jitter level below 20 ps might be required to achieve 16-bit noise performance in a one-bit converter with a continuous-time filter. As Robert Adams notes, this is because phase modulation causes the ultrasonic, out-of-band shaped noise to fold down into the audio band, increasing the in-band noise level. This is avoided in most converters. Some one-bit converters use a switched-capacitor (discrete-time) output filter; because a switched capacitor will settle to an output value regardless of when a clock edge occurs, it’s inherently less sensitive to jitter. The jitter performance of this type of converter is similar to that of a resistor ladder converter operating at the same oversampling rate.

However, to achieve this, the switched-capacitor circuit must remove all out-of-band noise. Multi-bit converters are generally less susceptible to jitter than true one-bit converters. Because multi-bit converters use multiple quantization levels, ultrasonic quantization noise is less, and phase error on the clock used to generate timing for the sigma-delta modulator will have less effect.

Audiophiles have sometimes reported hearing differences between different kinds of digital cables. That could be attributed to a D/A converter with a design that is inadequate to recover a uniformly stable clock from the input bitstream. But, a well-designed D/A converter with a stable clock will be immune to variations in the upstream digital signal path, as long as data values themselves are not altered.

Jitter must be controlled at every stage of the audio digitization chain. Although designers must specially measure clock jitter in their circuits, traditional analog measurements such as total harmonic distortion plus noise (THD+N) and spectrum analysis can be used to evaluate the quality of the output signal, and will include effects caused by jitter. For example, if THD+N measured at 0 dB, 20 kHz is not greater than THD+N measured at 1 kHz, then jitter is not significant in the converter. Indeed, measurements such as THD+N may more properly evaluate jitter effects than jitter measurements themselves.

As noted, if a receiving circuit can recover a data signal without error, interface jitter is not a factor. This is why data can be easily copied without degradation from jitter.

However, because of sampling jitter, an A/D converter must be accurately clocked, and clock recovery is important prior to D/A conversion.

Jitter does not present serious shortcomings in well designed, high-quality audio equipment. With 1-ns rms of jitter, distortion will be at -81 dBFS for a full-scale 20-kHz sine wave, and at -95 dBFS for a 4-kHz sine wave. For lower frequencies, the distortion is even lower, and the threshold of audibility is higher, thus at normal listening levels the effects of jitter will be inaudible, even in the absence of a signal. When masking is considered, higher jitter levels and higher distortion levels are acceptable. For example, with 10-ns rms of jitter, distortion will be at -75 dBFS for a 4-kHz sine wave; however, the distortion is still about 18 dB below the masking threshold created by the sine wave. One test found that the threshold of audibility for jitter effects with pure tones was 10-ns rms at 20 kHz, and higher at lower frequencies. Using the most critical program material, the threshold of audibility ranged from 30- to 300-ns rms for sinusoidal jitter. However, as components with longer word lengths and higher sampling frequencies come to market, jitter tolerances will become more critical. Ultimately, jitter is one of several causes of distortion in an output audio signal that must be minimized through good design practices.
