The new Sherwood S7910: State-of-the-Art for under $500.
In the past few years, good specifications have become a relative commonplace in the consumer electronics industry.
And, as the statistical gaps between comparably priced units lessened, other factors gained more importance. Most notably, design and the componentry that's used.
Nothing could suit us better. For twenty-three years, the strength of our reputation has rested primarily on the excellence of our engineering.
The new S7910 is a case in point.
With a power output of 60 watts per channel [minimum FMS at 8 ohms from 20-20,000 Hz] with no more than 0.1% Total Harmonic Distortion, the S7910 is clearly equipped to serve as the center point of the most progressive music systems.
More to the point, though, is the componentry that permits this capability. The output devices are paralleled OCL direct-coupled. This configuration, combined with the high voltage and current ratings of the output de vices, creates an extremely stable circuit. Additionally, the massive power transformer and twin 12,000 uf filter capacitors, backed by a zener regulated secondary power supply, ensure the S7910's ability to perform well beyond the demands of normal use.
The S7910's IHF FM Sensitivity rating is 9.84 dBf [1.7 µV]. That's one of the finest ratings attain able-and it can only be achieved through the utilization of superior componentry. 4-ganged tuning capacitors. Dual-Gate MOS FET's.
Phase Lock Loop MPX. Ceramic FM IF Phase Linear Filters. And Sherwood's newly-developed digital detector, which introduces virtually no distortion to the signal and never requires alignment.

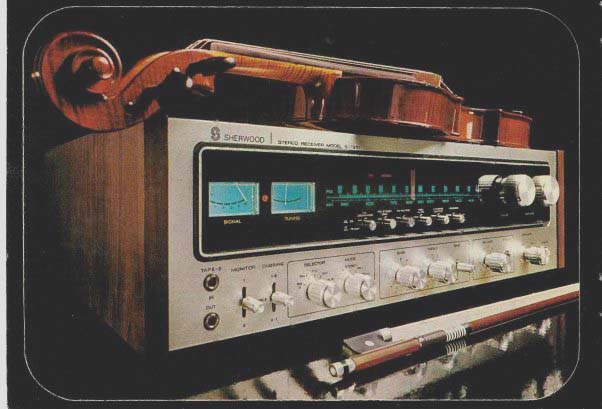

The front panel of the S7910 reflects every significant function of current hi-fidelity technology.
And again, the componentry behind the faceplate is the finest available. [For example, the 3-stage Baxandall tone circuit employed for the Bass and Treble controls.] Other features, such as the Master Tone Defeat switch, switchable FM deemphasis and FM Stereo Only, and two front panel tape dubbing jacks, contribute to an operational versatility that is truly outstanding.
In every respect, the S7910 demonstrates the attention to detail, the on-going effort to refine existing solutions and discover better ones, that has characterized Sherwood throughout the years.
You might be able to find another receiver in this price range that offers similar specifications-on paper.
But you won't find a receiver that's been more meticulously designed, or more carefully produced.
At Sherwood, we approach the business of creating receivers like an art.
Because no approach brings you closer to reality.
Sherwood Electronic Laboratories, Inc. 4300 North California Avenue Chicago, Illinois 60618 USA.
For a more complete description of Sherwood's unique approach to audio equipment engineering, write to the address above. We'll mail you a copy of our new brochure, "The. anatomy of high performance design," along with detailed information about the new S7910.
SHERWOOD--Everything you hear is true.
--The value shown is for informational purposes only. The actual resale price will be set by the individual Sherwood Dealer at his option. The cabinet shown is constructed of select plywood with a walnut veneer covering.
---Model 58910 offers identical specifications and features, but is FM only.
