NEW PRODUCTS--Roundup of latest audio equipment and accessories (with vintage magazine ADs) (July 1977).

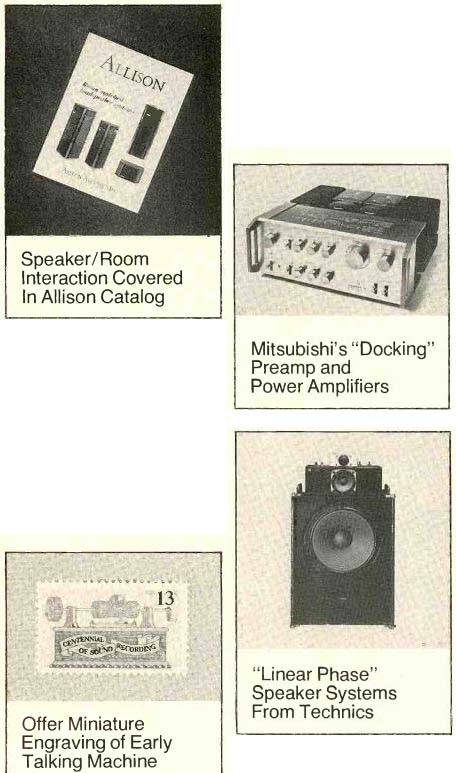

Speaker/Room Interaction Covered In Allison Catalog
A ten-page catalog from Allison Acoustics devotes several pages to a description of room-boundary influences on the in-room performance of conventional loudspeakers. Allison's approach to the problems created by these effects is also discussed, together with the rationale behind the design of the Allison mid-range and high-frequency drivers. The remainder of the booklet covers the company's four loudspeaker models in some detail, finishing with performance data on the individual drivers used in the system and some notes on low-frequency distortion. The catalog is available free from: Allison Acoustics Inc., Dept. SR, 7 Tech Circle, Natick, Mass. 01760.
Offer Miniature Engraving of Early Talking Machine
To commemorate the hundredth anniversary of sound recording, the U.S. Government has commissioned an illustration of an early Edison phonograph, reproductions of which are being offered to the public for a nominal sum. Depicted in three colors on sturdy government-approved stock, the antique cylinder instrument has the crank-handle/flywheel/mouthpiece construction that typifies recorders of the cylinder era (the familiar horn assembly often used for playback is not shown).
The picture's small size (roughly 1 1/2 x 1 inches) makes it eminently portable and convenient to carry in wallet or purse. For permanent installation, adhesive on the back of the picture permits affixing it to any smooth surface, including the envelopes of first-class postal correspondence, on which it confers the useful ability to pass through the U.S. mails unimpeded. The phonograph illustration is available singly or in various combinations, including sheets of one hundred. Perforations decorate all four sides. Price: 13¢ each.
"Linear Phase" Speaker Systems From Technics
The three systems comprising Technics' current line of "Linear Phase" loudspeakers give special attention to driver spacing, cross over characteristics, and driver phase/amplitude response. The individual drivers are spaced vertically to be as close together as possible, while their distances from the listener are staggered to equalize their acoustic path lengths. Crossover networks, matched to the drivers used, combine low-pass, high pass, and band-pass elements to provide a smooth phase transition at the crossover frequencies. The wide-range drivers employed are limited to bandwidths that are effectively free of phase anomalies.
The Model SB-7000A (shown) is a three way system (13 3/4-inch woofer, 4 3/4-inch cone mid-range, and 11/4-inch dome tweeter), in a ported enclosure, with a nominal impedance of 6 ohms. Crossover frequencies are 700 and 6,000 Hz. At a distance of 1 meter, the system produces a sound-pressure level of 90.5 dB with a 1-watt input; it is rated for peak inputs of 150 watts. Level controls adjust mid-range and tweeter outputs by varying the "Q" of associated resonant circuits, which is said to avoid many of the effects of conventional controls on phase integrity. The cabinet is clad in black vinyl material, surmounted by a black "sub-enclosure" for the mid-range and tweeter. Overall dimensions: 33 1/4 x 19 x 16 1/4 inches. Price: approximately $400. Two other Technics models, the SB-6000A and SB-5000A, are two-way systems based on the same design philosophy, with approximate prices of $300 and $160.
Mitsubishi's "Docking" Preamp and Power Amplifiers
The Mitsubishi DA-P10 preamplifier and the DA-A15 (150 watts per channel) or DA-A10 (100 watts per channel) are designed to interconnect or "dock" via special mating connectors on their respective rear and front panels. When so connected they form a unit less than 17 inches deep, 163/4 inches wide, and 6 3/4 inches high. The Mitsubishi products are described as "dual-monaural" components, meaning that virtually all circuits and controls (bass, treble, level, and subsonic filter in the P10 preamplifier) are completely separate for the two channels. At their rated power outputs (for 8 ohms, 20 to 20,000 Hz) the two power amplifiers have 0.1 percent harmonic and intermodulation distortion and signal-to-noise ratios of approximately 100 dB. For the preamplifier, harmonic and inter-modulation distortion are 0.02 percent at the rated output of 1 volt into 50,000 ohms. Signal-to-noise ratios are 73 (phono) and 90 (high-level) dB.
The power amplifiers contain circuits to protect against abnormally low load impedances and to prevent d.c. voltages from appearing at their outputs. Both have completely separate power supplies (including separate power transformers) for their two channels.
The preamplifier also has separate power sup plies, deriving line voltage from isolated windings on a single power transformer. Prices: DA-P10, $290; DA-A10, $390; DA-A15, $590.

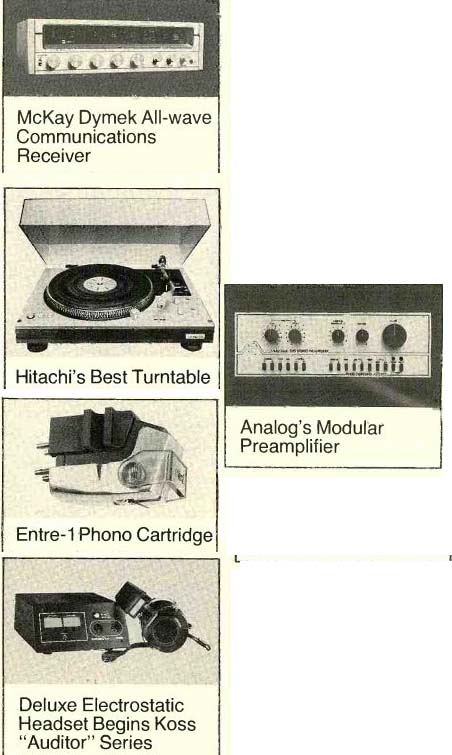

McKay Dymek All-wave Communications Receiver D The McKay Dymek DR-22 is a frequency-synthesizing AM unit that will receive all broadcasts between 50 kHz and 29.7 MHz, including AM stations, short wave, amateur radio, and Citizens Band, along with upper and lower side-band, continuous-wave, and tele type reception. The phase-locked-loop tuning system works together with combinations of crystal and ceramic filters to provide a maximum of selectivity and high resistance to cross modulation.
A prominent feature of the DR-22 is a five-figure LED digital frequency indicator. A front-panel switch permits the user to choose an audio bandwidth of 8,000 or 4,000 Hz, the latter providing an increase in selectivity.
Tuning is by means of four rotary selector switches and a fine-tuning control with a range of-±5 kHz. The tuner has a small built in power amplifier and speaker, connections for an external speaker, and an output for connection to an external audio system.
There is also a front-panel headphone jack.
The tuner comes with teak side panels; rack-mounting accessories are available. Dimensions are approximately 17 1/2 x 5 x 16 inches. Price: $995.
Deluxe Electrostatic Headset Begins Koss "Auditor" Series D
The ESP/10 electrostatic stereo head phones, successor to the illustrious ESP/9, is the start of a new Koss headphone line to be entitled the "Auditor" series. The ESP/10 consists of two parts: the headset itself, with circumaural foam-filled ear cushions and an adjustable padded headband attached through pivoting yokes, and an energizing unit in the form of a small console accepting up to two headsets. The energizer, which plugs into a standard a.c. outlet, is in turn connected to the speaker outputs of a stereo amplifier (a minimum of 35 watts per channel is recommended to realize the full dynamic-range potential of the headphones). It has "semi" peak-reading meters for each channel, plus a relay that cuts off the signal to the headset in the event of excessive drive level. The relay resets itself automatically after a few seconds' pause; a red LED on the energizer lights when the relay has tripped.
The ESP/10-headset has electrostatic diaphragms with radiating areas of 3.8 square inches per side. Usable frequency response is 10 to 22,000 Hz within ±2 dB of Koss' "ideal" response for headphones. A sound-pressure level of 100 dB is achieved for an input to the energizer of about 2 volts rms.
Harmonic distortion for that level at 1,000 Hz is less than 0.5 percent. Excluding cable, the headset weighs just under 1 pound. Price of the ESP/10 (energizer plus a single headset): $300.
The PS-58 is a two-speed (33 1/3 and 45 rpm) "Uni-torque" direct-drive machine with fully automatic operation. The S-shaped tubular tone arm has its own motor to insure complete isolation from the platter-drive system.
The 12-inch aluminum platter, weighing 3 1/2 pounds, carries a stroboscopic pattern on its edge, illuminated by a lamp to indicate any speed error. Separate adjustment controls for the speeds operate over a 5 percent range.
A single lever control selects manual or automatic operation and initiates the automatic cycle. Two other controls-one for tone-arm cueing (fully damped) and the other for selecting record size (diameters of 12, 10, or 7 inches)--are also provided. Tracking force is applied by a calibrated counterweight on the tone arm; the antiskating adjustment is separate. Wow and flutter (weighted) are 0.025 percent; rumble (DIN B weighted) is-74 dB. A hinged dust cover is also supplied, resulting in dimensions of 18 3/4 x 6 1/2 x 14 1/2 inches. Suggested price: $300.
Analog's Modular Preamplifier
The Analogue 520 from Analog Engineering Associates has all its signal-handling circuitry contained in six epoxy-encapsulated modules. These in turn plug into connectors on a large printed-circuit board that fills al most the entire chassis; all controls (environmentally sealed) are also affixed to the board.
The 520 has inputs for two phono cartridges, tuner, auxiliary source, and inputs and tape-monitoring circuits for two tape machines.
Harmonic and intermodulation distortion are less than 0.004 percent for both the phono and the high-level sections, referred to an output level of 2.5 volts at the main outputs. Signal-to-noise ratios (unweighted) for the two sections are 80 and 90 dB, respectively. Frequency response throughout the preamplifier is flat within +0,-0.5 dB over the full audio range. The 520 has a maximum output of 7.5 volts, and a load of at least 30,000 ohms is recommended. Dimensions: approximately 15 x 4 3/4 x 11 inches. Price: $590. Oak or oiled-walnut cabinets are available as options.
American Audioport has become exclusive distributor for the Entre-1, said to be the lightest (at 5.8 grams) moving-coil stereo pho no cartridge available. For a standard recorded level the cartridge has an output of 0.2 millivolt; it presents a source impedance of 3 ohms. Recommended tracking force is 1.8 grams. The Entre-l's stylus is described as a modified elliptical configuration with a vertical tracking angle of 20 degrees. Frequency response is 10 to 50,000 Hz. Retail price: about $200.

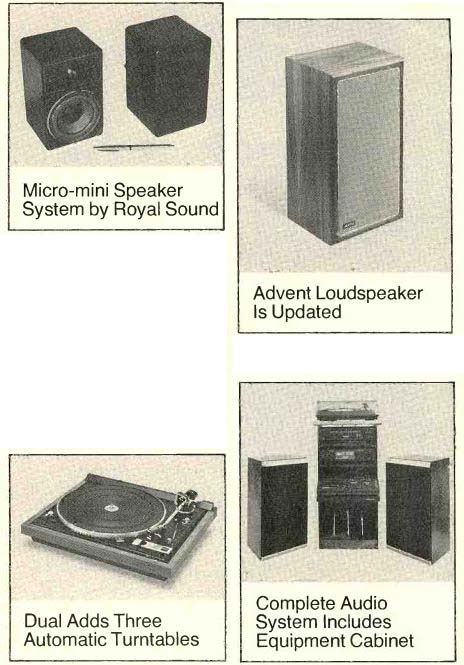

Micro-mini Speaker System by Royal Sound
Especially suited for mobile applications, the Royal Sound RS-6040 has a cast aluminum enclosure measuring a compact 6 1/2 x 4 1/4 x 4 1/2 inches. The driver complement consists of a 4-inch air-suspension woofer and a 2 3/4-inch dome tweeter, resulting in a system with an impedance range of 4 to 8 ohms and a power-handling capacity of 20 watts. The crossover frequency is 2,800 Hz; frequency response is rated at 50 to 22,000 Hz. The speaker weighs 4 1/4 pounds and comes with a 9-foot connecting cable terminated by a DIN speaker plug.
Available finishes are black or natural. Price: $200 per pair.
Dual Adds Three Automatic Turntables
All three of Dual's latest automatic turntables are belt-driven, and all three, feature the four-point gimbal tone-arm suspensions that have distinguished the top-of-the-line Dual machines. Two speeds (33 1/3 and 45 rpm) are provided, and speeds can be fine-tuned over a range of 6 percent by means of a pulley that can be varied in its effective diameter. The Model 1245 (shown) has a stroboscopic indicator in the form of indentations cast into the edge of its 12-inch platter, illuminated by a strobe lamp. It is provided with base and dust cover at a price of less than $230. The Dual 1241, also with a 12-inch platter, is priced at under $200, base and dust cover included.
The dimensions of the units installed on their bases are 16 3/4 inches wide, 14 1/2 inches deep, and 7 3/4 inches high with dust cover. The Model 1237 has a somewhat smaller platter and chassis than the other two units and is priced at under $135, with base and dust cover costing less than $30 additional.
All three machines have damped cueing mechanisms and antiskating adjustments calibrated for conical, elliptical, and CD-4 styli.
The tone arms are of a straight tubular design, with stylus force applied by a calibrated spring mechanism after the arm has been balanced by means of a rotating counterweight.
The record-changing spindles for all three machines accommodate up to six records; manual spindles that rotate with the platter are also provided.
Complete Audio System Includes Equipment Cabinet
MGA has announced a complete component audio system, including several options, that is supplied with a free-standing rosewood cabinet to house the electronic components as well as a selection of record albums. The ensemble, called the "Series E System Components," begins with the belt-drive DP-200 single-play turntable, a unit with speeds of 33 1/3 and 45 rpm that comes with a magnetic cartridge installed. The amplifier, the DA-U200, is an integrated design rated at 25 watts per channel with a maximum of 0.5 percent harmonic or intermodulation distortion. The DA-F200 AM/FM stereo tuner has a usable sensitivity of 2.5 microvolts and a signal-to-noise ratio of 75 dB in mono, 70 dB in stereo. The SS-200 speaker systems are two-way air-suspension designs (8-inch woofer, 2-inch cone tweeter) with rosewood-finish cabinets. The cost of this complete ensemble, including equipment cabinet, is $670.
For an additional $220 a two-head cassette machine incorporating Dolby B-type noise reduction can be added to the above. Other options include a 50-watt-per-channel integrated amplifier, the DA-U300, and the SS-300 speaker systems, similar in configuration to the SS-200's but adding an 8-inch passive radiator and providing a 20-watt increase in power-handling ability. The complete system with these two options (excluding the cassette deck) is priced at approximately $750.
The "new” Advent loudspeaker is the successor to the company's original speaker system. It remains a two-way, 8-ohm air-suspension design with a woofer of nominal 12-inch diameter and a 1.25-inch tweeter. however, both drivers are said to have been redesigned for more efficient manufacture, and the output capability of the tweeter has been increased, leading to an augmentation of the system's extreme high-frequency response.
Minimum power required is 15 watts. According to Advent, this change has been made to "take advantage of such recent improvements in source material as the wide use of noise-reduction systems; the higher levels of high-frequency information on records due to improved disc cutters; and a new generation of phono cartridges capable of tracking those higher levels with low distortion." In other respects, the new speaker's performance remains similar to that of the original.
The enclosure, available in walnut finish or a vinyl-clad "Utility" version, measures 26 x 14 1/8 x 11 1/2 inches. Prices: $149 in walnut; $129, utility.
NOTICE: All product descriptions and specifications quoted in these columns are based on materials sup plied by the manufacturer. Recent fluctuations in the value of the dollar will have an effect on the price of merchandise imported into this country. Please be aware that the prices quoted in this issue may be subject to change.
Vintage magazine ADs:
No components have ever been so extravagantly engineered. And so extravagantly praised.
What they said.
Stereo Review: "We see the Accuphase line as occupying a place in audio analogous to that of Rolls Royce among automobiles: Hi Fi News and Record Review: "There is no doubt that the P-300 is one of the most advanced power amplifiers on the world hi-fi market today." Why they said it.
Accuphase components are handcrafted with unprecedented devotion to excellence. Only aero space quality component parts are used, with each hand-selected.
The P-300 amp has modular construction, push-pull complimentary symmetry in all input and output circuits; 3 meter ranges and power-limiting switches to protect your speakers. And more.
With its design overkill, the Accuphase amp can loaf through the most demanding and complex musical passages, maintaining delicacy and precision without sacrificing power.
The C-200 Preamplifier has 10 back and front inputs, 7 outputs, 28 controls-versatility beyond belief-yet is extremely simple in operation.
The reason for such lavish craftsmanship in every Accuphase component is very simple: a deep devotion to music.
If you share that devotion, please see an Accuphase Showcase dealer. You'll enrich your life. Accuphase When you're really serious about your music. Distributed by TEAC Corporation of America, 7733 Telegraph Road, Montebello, California 90640. MAC. 1977
---------------
"PERFECT BALANCE"
sound-clear, clean and brilliant

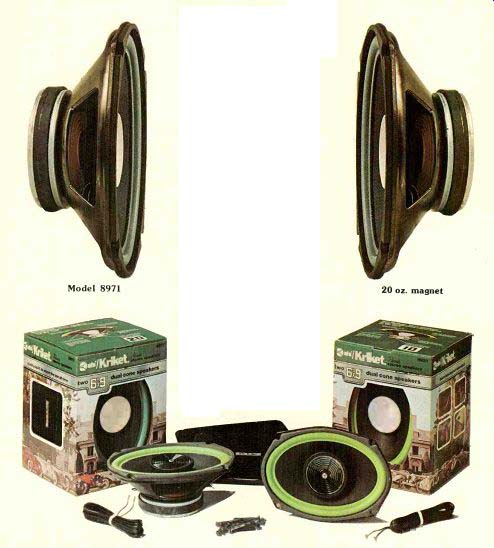

Model 8971 20 oz. magnet You can drive 30 watts RMS through our 6" x 9" speakers all day, and they'll just keep cookin'.
