The following tables show the range of standard stock size power resistors manufactured for use in electronic, industrial and military applications. Wherever possible, stock type resistors should be specified to assure lowest cost and fastest delivery. When stock type resistors will not meet exact application requirements, "made-to order" resistors can be supplied.
-------------------

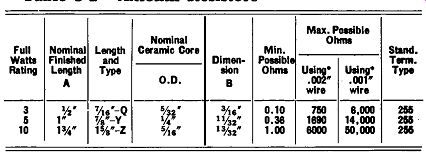

Table 5-1 Axiohm Resistors
*Standard Tolerance 1 Ohm to Maximum Possible Ohms ± 5%. Below 1 Ohm ± 15%.

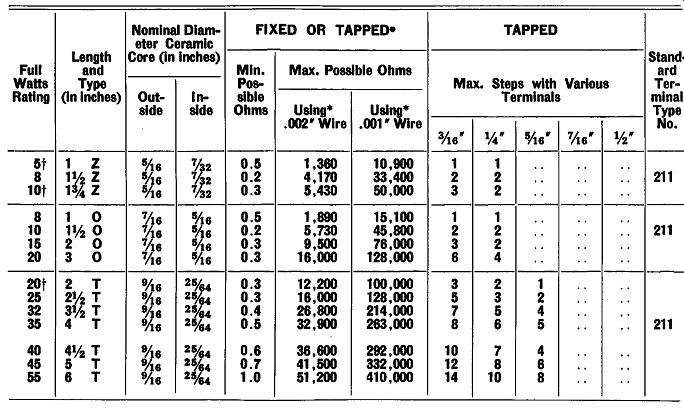

Table 5-2 Vitrohm Tubular Resistors.
NOTES: These sizes conform to EIA standards for power wire wound Tubular Type Resistors.
*In selecting high resistance values a reduction in watts rating is necessary due to high voltage limitations.
It is recommended that not more than 495 volts R.M.S. (700 V. Peak) per linear inch length of core be applied. In any event the voltage rating shall not exceed •r watts .. x ohms.
•The maximum possible ohms for tapped resistors must he reduced depending on the length of the resistor and the number of steps.
Vitrohm resistors are also available in adjustable and multi-section forms.
NOTES: These sizes conform to RETMA standards for power wire wound Tubular Type Resistors.
*In selecting high resistance values a reduction in watts rating is necessary due to high voltage limitations.
It is recommended that not more than 495 volts R.M.S. ( 700 V. Peak) per linear inch length of core be applied. In any event the voltage rating shall not exceed v watts x ohms.
•The maximum possible ohms for tapped resistors must be reduced depending on the length of the resistor and the number of steps.
Vitrohm resistors are also available in adjustable and multi-section forms.
Vitrohm Tubular Resistor-Dimensions
------------

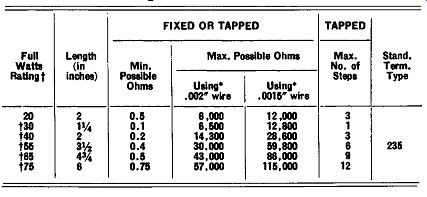

Table 5-3 Stripohm Resistors
Rated sizes conform to RETMA standards for Power Type Strip Resistors.
*In selecting high resistance values a reduction in watts rating is necessary due to high voltage limitations. It is recommended that not more than 495 volts R.M.S. (700 V. Peak) per linear inch length of core be applied. In any event the voltage rating shall not exceed v watts x ohms.
--------------

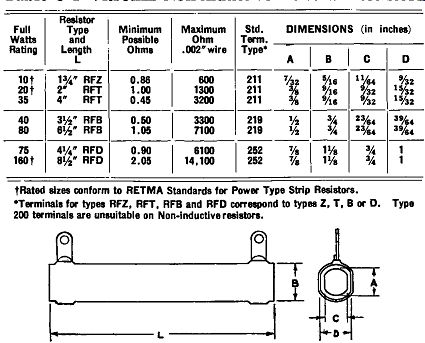

Table 5-4 Vitrohm Non-inductive Tubular Resistors
Rated siz11 conform to RETMA Standards for Power Type Strip Resistors.
*Terminals for typ11 RFZ, RFT, RFB and RFD torr11PDnd to typ11 Z, T, B or D. Type 200 terminals are un111itable on Non-inductive resistors.
--------------
Table 5-5 Plaqohm Resistors
-------------

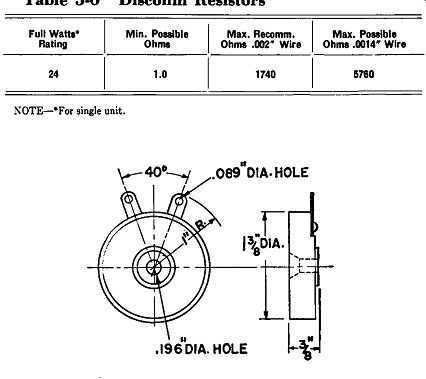

Table 5-6 Discohm Resistors
-----------------
Ribflex Resistor-Dimensions
Note-Resistor dimensions are shown with Type 201 Terminals.
Refer to Page 135 for dimensions of other terminals.
-------------
Table 5-7 Ribflex Resistors
--------------

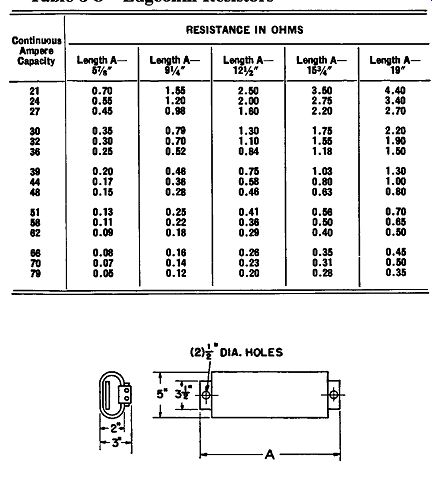

Table 5-8 Edgeohm Resistors
----------------

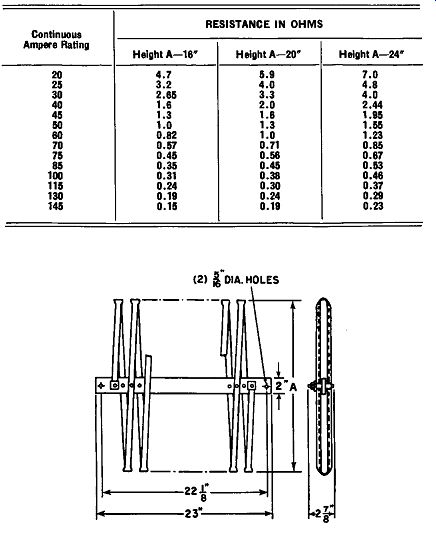

Table 5-9 Barohm Resistors

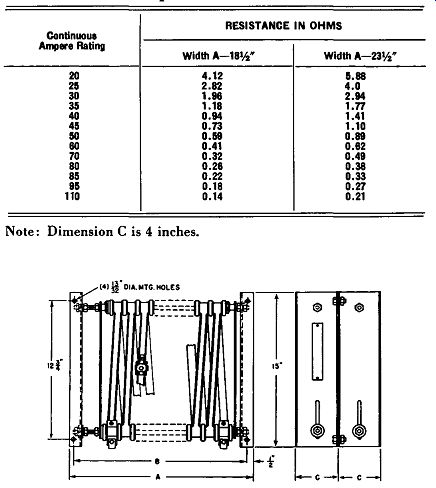

Table 5-10 Loopohm Resistors
Note: Dimension C is 4 inches.
Typical Vitrohm Resistor Terminals (Dimensions in Inches)
